Product Description

Creative Monopole

Standards Self Supporting Steel Monopole Structure Designs
The rapidly growing and increasingly competitive Telecommunications, and wireless Communication Industries requite fast, flexible and cost efficient infrastructure project implementations. Contractors and suppliers who can meet those demands allow Operators to gain revenues early on and reduced internal cost overheads.

CREATIVE ENGINEERING & COMMUNICATIONS PTE LTD addresses these market demands by Introducing standardized antenna supporting structures using Monopoles , thereby guaranteeing short design phases. This approach consequently ensures minimum lead times from the initial order to the actual of project implementations

Type of Standard Antenna Supporting

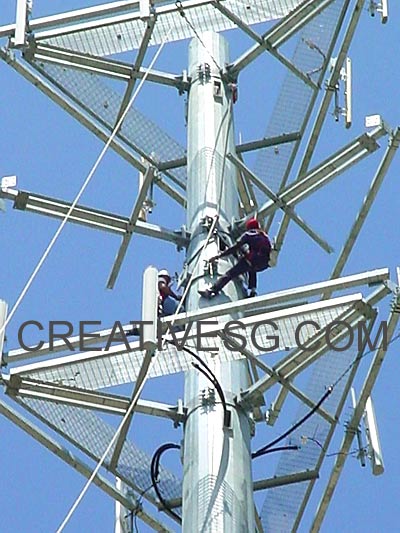

Self Supporting Monopole constructed from High Tensile steel materials and connection using slip joints or Flange joint

Design Wind Speed: 120- 250km/hr
Custom design to Client requirement

Design Criteria Standard
The design criteria are based on an extensive research on antenna supporting structures fulfilling the majority of technical specifications and requirements of Mobile infrastructure applications

International Design Standards and Codes such as (BS 8100,EIA/TIA -222G) are used.

Antenna Design Loading:
Custom design to Client requirement

Final Materials Finishes
Hot dipped Galvanised to BS729 or ASTM 123 standards

Bolts and Nuts.
All the connections in the field shall be made with galvanized Grade 8.8 steel bolts, each fitted with one spring washer.

ACCESSORIES

Ladder
Generally the ladders are built on the outside of the pole or inside the pole which depend on client requirements. tower.

Safety Climb
With new OH&S standards, where practical, riggers now have to be attached at all times. Creative stock a full range of fall arrest systems. The safety device incorporates a steel cable, which is installed on the climbing structure. Riggers equipped with a harness and with sliding sleeve ascend the structure while constantly attached to the cable.

Feeder Brackets
Monopole generally have feeder brackets which secure the cables running up to the equipment on the structure. The feeder Brackets can be installed outside or inside the pole.

Cable Tray
Cable trays have a similar purpose to feeder brackets. A cable tray can be run vertically the whole way up the structure; however it is more commonly used to support and secure cables from the lower part of the structure horizontally to the equipment shelter.

Lightning Protection
A lightning finial is used at the top of the structure which under normally conditions would be struck by a lightning hit instead of equipment fitted to structure.

Earthing
Our standard earthing kit comprises of a galvanised steel 3m strap attached to the structure which is connected to a 1m stake in the ground.

Platforms
Platforms can be supplied are:
  • Work Platforms
  • Rest Platforms
  • Lookout Platforms

Antenna mounts
Antenna mounts can be supplied for:

  • Microwave antennas
  • GSM mobile antennas
  • Small miscellaneous antennas

We can also design and fabricate custom mounts to suit your requirements.

Aircraft Warning Lights
Where required, Creative structures can be fitted with aircraft warning lights to comply with all relevant airport control authority requirements.

 These include:

  • Single & Twin Lights – led Low Intensity
  • Beacon Lights – Led Medium Intensity
  • Strobe Lights – Led High Intensity
  • Photo Cells
  • Power Cables

Anti Climb
An anti climb device is a barrier around the base of the structure that fends off the general public from climbing up the Monopole structure.


For further information, inquires and customized design solutions for Monopole supporting structures please contact Creative Engineering & Communications .
